Description

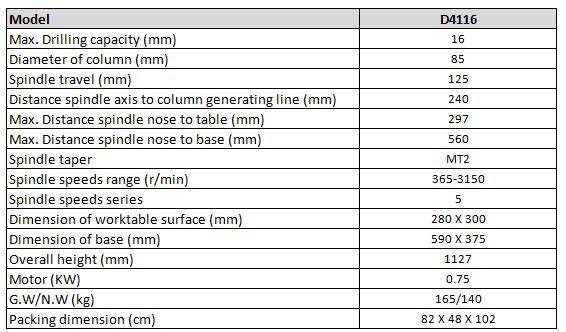

| Model |
D4116 |
| Max. Drilling capacity (mm) |
16 |
| Diameter of column (mm) |
85 |
| Spindle travel (mm) |
125 |
| Distance spindle axis to column generating line (mm) |
240 |
| Max. Distance spindle nose to table (mm) |
297 |
| Max. Distance spindle nose to base (mm) |
560 |
| Spindle taper |
MT2 |
| Spindle speeds range (r/min) |
365-3150 |
| Spindle speeds series |
5 |
| Dimension of worktable surface (mm) |
280 X 300 |
| Dimension of base (mm) |
590 X 375 |
| Overall height (mm) |
1127 |
| Motor (KW) |
0.75 |
| G.W/N.W (kg) |
165/140 |
| Packing dimension (cm) |
82 X 48 X 102 |
PURROS Machinery have various types of Hydro Speed Regulators, Self-Feeding Drill Heads(Units), Multi-Spindle Drill Heads and Servo feed tapping machine, Special Purpose Machines, warmly waiting for you to inquire.
