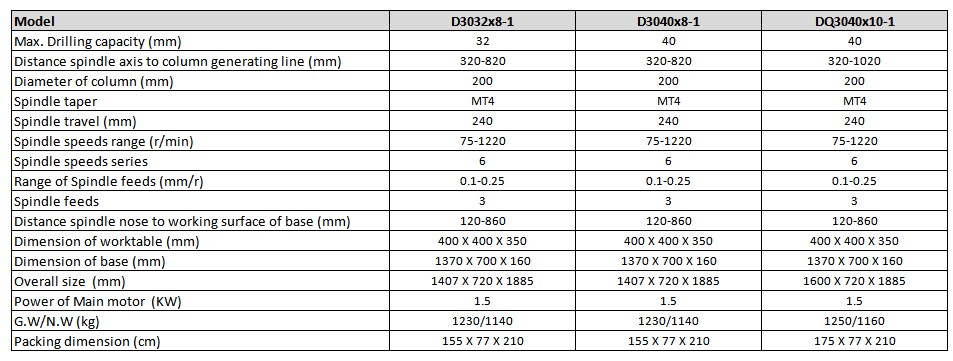

Description
| Model |
D3032x8-1 |
D3040x8-1 |
DQ3040x10-1 |
| Max. Drilling capacity (mm) |
32 |
40 |
40 |
| Distance spindle axis to column generating line (mm) |
320-820 |
320-820 |
320-1020 |
| Diameter of column (mm) |
200 |
200 |
200 |
| Spindle taper |
MT4 |
MT4 |
MT4 |
| Spindle travel (mm) |
240 |
240 |
240 |
| Spindle speeds range (r/min) |
75-1220 |
75-1220 |
75-1220 |
| Spindle speeds series |
6 |
6 |
6 |
| Range of Spindle feeds (mm/r) |
0.1-0.25 |
0.1-0.25 |
0.1-0.25 |
| Spindle feeds |
3 |
3 |
3 |
| Distance spindle nose to working surface of base (mm) |
120-860 |
120-860 |
120-860 |
| Dimension of worktable (mm) |
400 X 400 X 350 |
400 X 400 X 350 |
400 X 400 X 350 |
| Dimension of base (mm) |
1370 X 700 X 160 |
1370 X 700 X 160 |
1370 X 700 X 160 |
| Overall size (mm) |
1407 X 720 X 1885 |
1407 X 720 X 1885 |
1600 X 720 X 1885 |
| Power of Main motor (KW) |
1.5 |
1.5 |
1.5 |
| G.W/N.W (kg) |
1230/1140 |
1230/1140 |
1250/1160 |
| Packing dimension (cm) |
155 X 77 X 210 |
155 X 77 X 210 |
175 X 77 X 210 |
