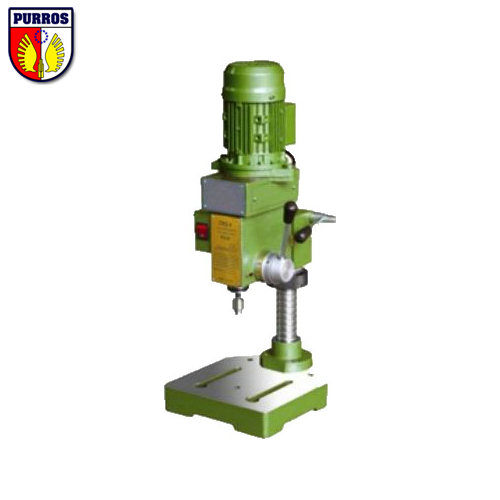

4mm Bench Drilling Press DWG-4, 0.12kw

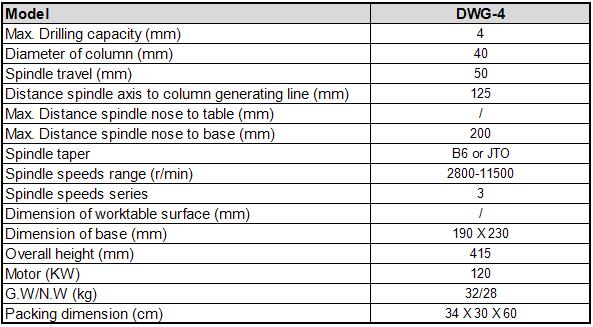

Model DWG-4
Max. Drilling capacity (mm) 4
Diameter of column (mm) 40
Spindle travel (mm) 50
Distance spindle axis to column generating line (mm) 125
Max. Distance spindle nose to table (mm) /
Max. Distance spindle nose to base (mm) 200
Spindle taper B6 or JTO
Spindle speeds range (r/min) 2800-11500
Spindle speeds series 3
Dimension of worktable surface (mm) /
Dimension of base (mm) 190 X 230
Overall height (mm) 415
Motor (KW) 0.12
G.W/N.W (kg) 32/28
Packing dimension (cm) 34 X 30 X 60
PURROS Machinery have various types of Hydro Speed Regulators, Self-Feeding Drill Heads(Units), Multi-Spindle Drill Heads and Servo feed tapping machine, Special Purpose Machines, warmly waiting for you to inquire.
