Description

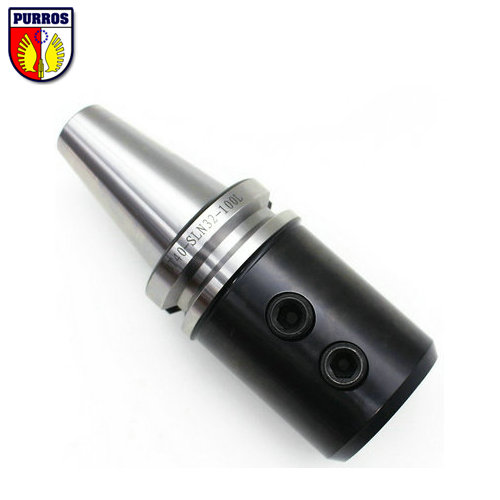

●Type: BT-SLN Side-lock Mill Holder
●Taper Size: BT50
●Clamping Range: 6-51mm
●Heat Treatment Hardness: HRC48-50

BT40 Taper Shank End Mill Holder

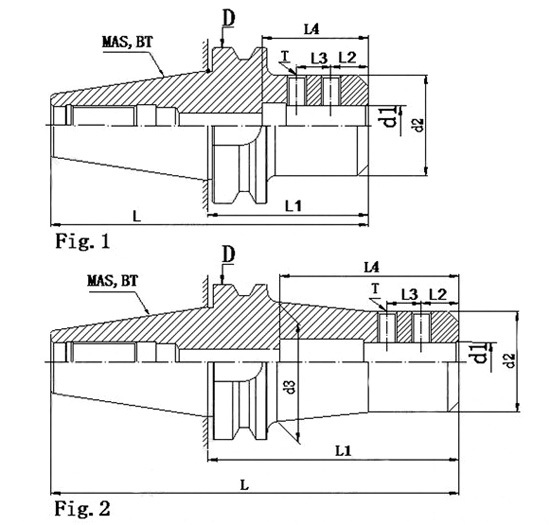

Size(BT-SLN d1-L1) D d1 d2 d3 L L1 L2 L3 T Fig Weight(KGS) Price($)
BT50-SLN6-100 100 6 25 – 202 100 12 10 M6 1 4.1 125.39
BT50-SLN8-100 100 8 28 – 202 100 14 12 M8 1 4.15 126.29
BT50-SLN10-100 100 10 35 – 202 100 15 14 M10 1 4.15 126.39
BT50-SLN12-100 100 12 40 – 202 100 20 16 M10 1 4.15 126.49
BT50-SLN16-100 100 16 45 – 202 100 22 18 M10 1 4.15 126.59
BT50-SLN16-150 100 16 45 53 252 150 22 18 M10 2 5 149.59
BT50-SLN16-200 100 16 45 53 302 200 22 18 M10 2 6.8 200.19
BT50-SLN20-100 100 20 50 – 202 100 25 20 M12 1 4.8 140.69
BT50-SLN20-150 100 20 50 57 252 150 25 20 M12 2 5.8 167.09
BT50-SLN20-200 100 20 50 57 303 200 25 20 M10 2 6.9 202.39
BT50-SLN20-250 100 20 50 57 352 250 25 20 M10 2 7.3 229.29
BT50-SLN20-300 100 20 50 57 402 300 25 20 M12 2 7.8 256.09
BT50-SLN25-100 100 25 60 – 202 100 24 25 M12 1 5.5 155.99
BT50-SLN25-150 100 25 50 57 252 150 24 25 M12 2 6 171.39
BT50-SLN25-200 100 25 50 57 302 200 24 25 M12 2 7 204.59
BT50-SLN25-250 100 25 50 57 352 250 24 25 M12 2 7.5 233.69
BT50-SLN25-300 100 25 50 57 402 300 24 25 M12 2 8 260.49
BT50-SLN32-105 100 32 65 – 207 105 24 28 M16 1 8 210.59
BT50-SLN32-150 100 32 55 65 252 150 24 28 M16 2 6.5 182.39
BT50-SLN32-200 100 32 55 65 302 200 24 28 M16 2 7.5 215.49
BT50-SLN32-250 100 32 55 65 352 250 24 28 M16 2 8 244.59
BT50-SLN32-300 100 32 55 65 402 300 24 28 M16 2 8.5 271.39
BT50-SLN40-115 100 40 80 – 217 115 30 28 M16 1 6.6 179.99
BT50-SLN40-150 100 40 70 80 252 150 30 32 M20 2 7 193.29
BT50-SLN40-200 100 40 70 80 302 200 30 32 M20 2 7.5 215.49
BT50-SLN40-250 100 40 70 80 352 250 30 32 M20 2 8 235.49
BT50-SLN40-300 100 40 70 80 402 300 30 32 M20 2 8.5 257.79
BT50-SLN42-120 100 42 80 – 222 120 30 32 M20 1 6.5 182.39
BT50-SLN50-120 100 50 90 – 222 120 35 35 M20 1 7.2 197.59
BT50-SLN50.8-120 100 51 90 – 222 120 35 35 M20 1 7.3 199.79
PURROS Machinery have various types of Hydro Speed Regulators, Self-Feeding Drill Heads(Units), Multi-Spindle Drill Heads and Servo feed tapping machine, Special Purpose Machines, warmly waiting for you to inquire.
