Description

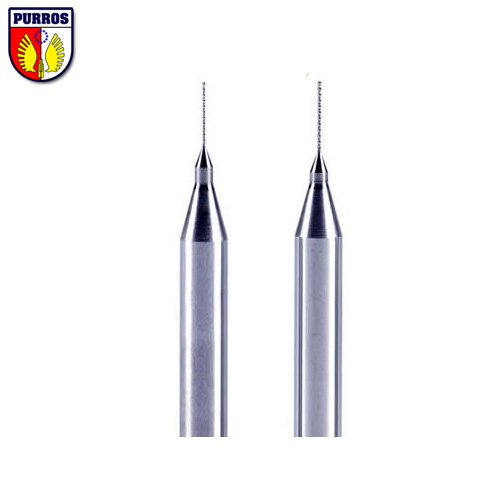

●Type: Circuit Board Drill Bits
●Drill Bit Size: 0.1-1.0mm
●Drill Point Angle: 130
●Flute Length: 1.8-10.0mm
●Shank Diameter: 3.175mm
●Overall Length: 38.1mm
●Bit Material: Solid Carbide

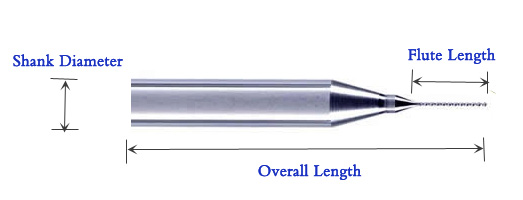

| Drill Bit Size | Shank Diameter | Overall Length | Flute Length | Drill Point Angle |
| 0.1 | 3.175 | 38.1 | 1.8 | 130° |
| 0.15 | 3.175 | 38.1 | 1.8 | 130° |
| 0.2 | 3.175 | 38.1 | 3.5 | 130° |
| 0.25 | 3.175 | 38.1 | 4.5 | 130° |
| 0.3-0.35 | 3.175 | 38.1 | 5.5 | 130° |
| 0.4-0.45 | 3.175 | 38.1 | 7 | 130° |
| 0.5-0.55 | 3.175 | 38.1 | 8.5 | 130° |
| 0.6-0.75 | 3.175 | 38.1 | 9.5 | 130° |
| 0.8-1 | 3.175 | 38.1 | 10 | 130° |
| 1.05-1.2 | 3.175 | 38.1 | 10.5 | 130° |
| 1.25-3.175 | 3.175 | 38.1 | 12 | 130° |
| 3.2-6.5 | 3.175 | 38.1 | 12 | 160° |
0.1: $8.99
0.15: $8.99
0.2: $8.49
0.225: $8.99
0.25: $8.49
0.275: $8.99
0.3: $8.49
0.35: $8.49
0.4: $8.49
0.45: $8.49
0.5: $8.49
0.55: $8.49
0.6: $8.49
0.65: $8.49
0.7: $8.49
0.75: $8.49
0.8: $8.49
0.85: $8.49
0.9: $8.49
0.95: $8.49
1.0 : $8.49
