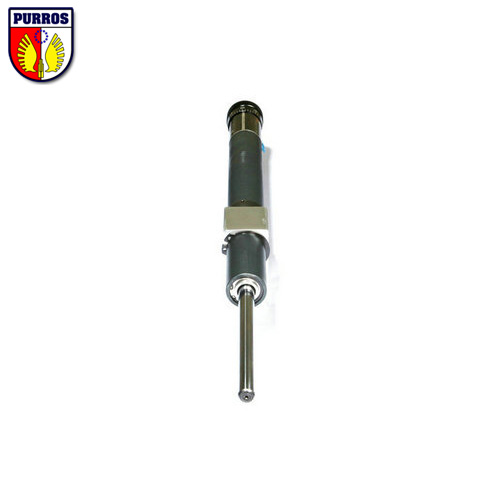

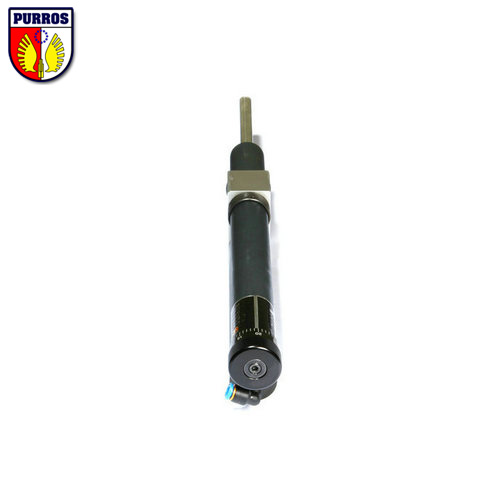

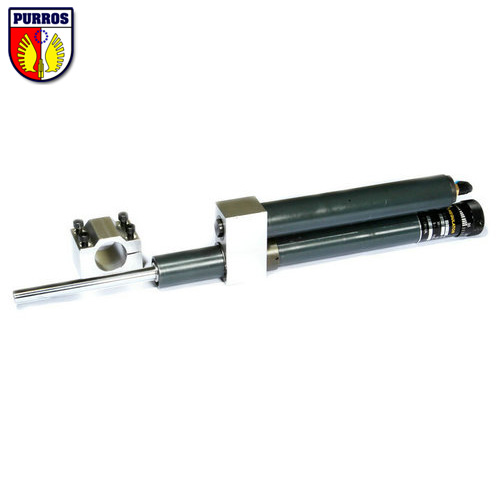

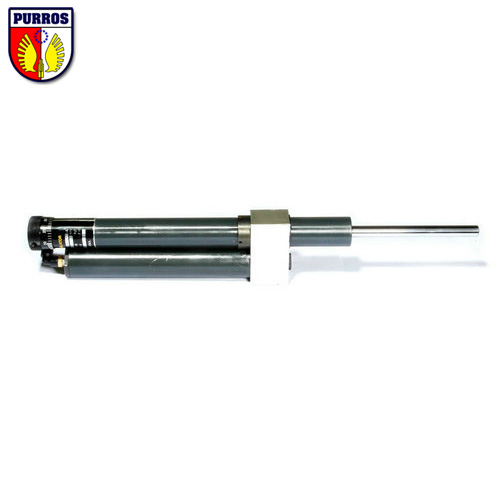

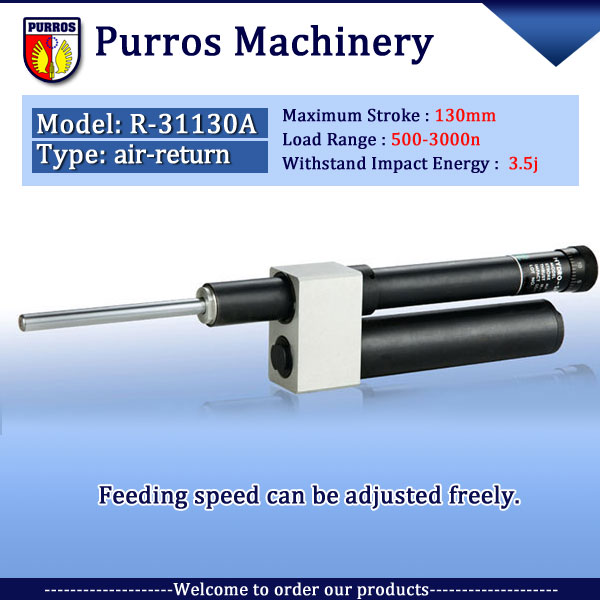

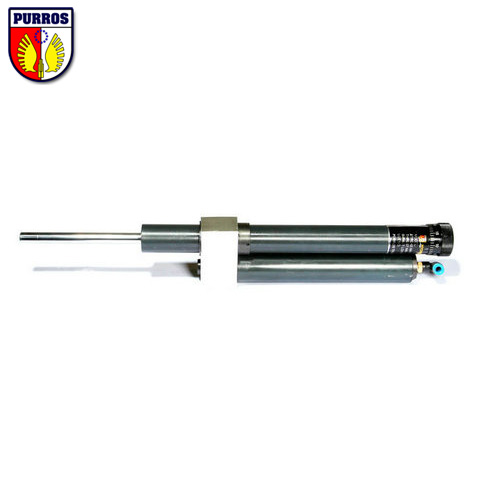

R31130-A Hydraulic damper price, Hydro Speed Regulator – Drilling Unit Accessories



Maximum Stroke:130mm
Load Range:500-3000n
Withstand Impact Energy:3.5j

Air Return Type Hydro Speed Regulator

Purros Machinery also have other models (Maximum Stroke:40-180mm, Load Range:200-3000n, Withstand Impact Energy:2.3-3.5j)


Purros Machinery Hydro speed regulators are designed to control the forward speed (feed rate) of the Electro Pneumatic Drilling Units. Use of a regulator provides adjustable feed rates, faster cycle times, reduces burring, eliminates drill breakage, and prevents sudden forward surges at drill breakthrough. One regulator is required per Electro Pneumatic Drilling Units for drilling operations.


Even if remove the load of piston rod of R-A type hydraulic damper, the piston rod still can stay at original position, only provide compressed air piston rod can return, a multiple setp feed control can be carried out.
Air return regulators serve the same function as the spring return type in that they control the forward speed of the drill. However, the air type requires an air signal at the end of each drilling cycle to return the regulator to its original position. Also, these regulators are required for peck feed drilling as they are capable of holding the drilling depth at the end of each peck feed motion.

1. Constant Speed.
2. Life of Millions of cycles without leaking.
3. Easy to install, Leakproof, No need for piping or wiring.
4. With the position of the piston rod maintained along the strokes as desired efficient pack feed drilling is possible.
5. Longer strokes available for extended application purpose.

PURROS Machinery have various types of Hydro Speed Regulators, Self-Feeding Drill Heads(Units), Multi-Spindle Drill Heads and Servo feed tapping machine, Special Purpose Machines, warmly waiting for you to inquire.
