Description

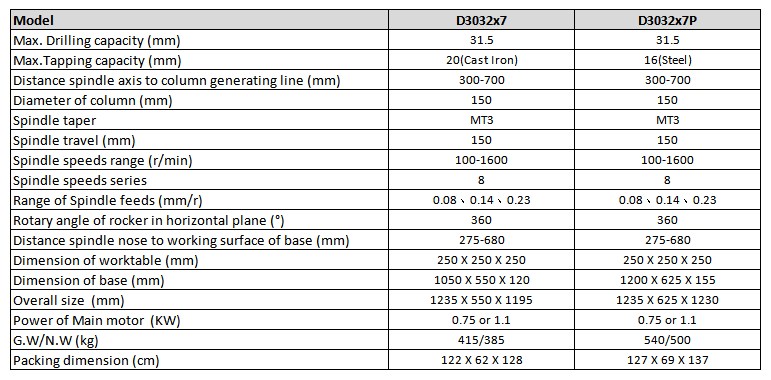

| Model |
D3032x7 |
D3032x7P |
| Max. Drilling capacity (mm) |
31.5 |
31.5 |
| Max.Tapping capacity (mm) |
20(Cast Iron) |
16(Steel) |
| Distance spindle axis to column generating line (mm) |
300-700 |
300-700 |
| Diameter of column (mm) |
150 |
150 |
| Spindle taper |
MT3 |
MT3 |
| Spindle travel (mm) |
150 |
150 |
| Spindle speeds range (r/min) |
100-1600 |
100-1600 |
| Spindle speeds series |
8 |
8 |
| Range of Spindle feeds (mm/r) |
0.08、0.14、0.23 |
0.08、0.14、0.23 |
| Rotary angle of rocker in horizontal plane (°) |
360 |
360 |
| Distance spindle nose to working surface of base (mm) |
275-680 |
275-680 |
| Dimension of worktable (mm) |
250 X 250 X 250 |
250 X 250 X 250 |
| Dimension of base (mm) |
1050 X 550 X 120 |
1200 X 625 X 155 |
| Overall size (mm) |
1235 X 550 X 1195 |
1235 X 625 X 1230 |
| Power of Main motor (KW) |
0.75 or 1.1 |
0.75 or 1.1 |
| G.W/N.W (kg) |
415/385 |
540/500 |
| Packing dimension (cm) |
122 X 62 X 128 |
127 X 69 X 137 |
