Description

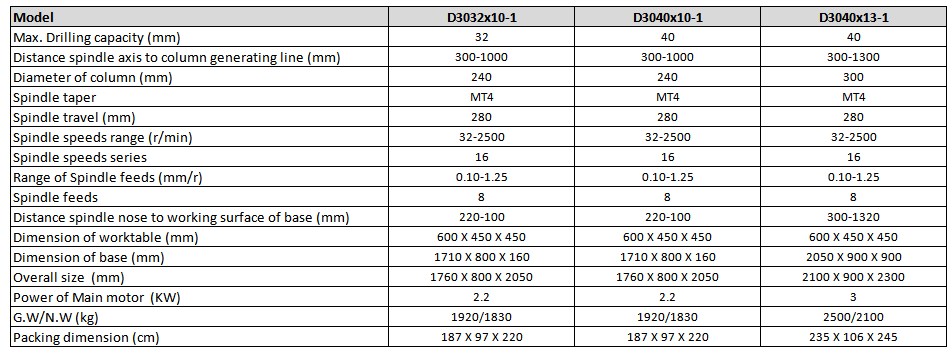

| Model |
D3032x10-1 |
D3040x10-1 |
D3040x13-1 |
| Max. Drilling capacity (mm) |
32 |
40 |
40 |
| Distance spindle axis to column generating line (mm) |
300-1000 |
300-1000 |
300-1300 |
| Diameter of column (mm) |
240 |
240 |
300 |
| Spindle taper |
MT4 |
MT4 |
MT4 |
| Spindle travel (mm) |
280 |
280 |
280 |
| Spindle speeds range (r/min) |
32-2500 |
32-2500 |
32-2500 |
| Spindle speeds series |
16 |
16 |
16 |
| Range of Spindle feeds (mm/r) |
0.10-1.25 |
0.10-1.25 |
0.10-1.25 |
| Spindle feeds |
8 |
8 |
8 |
| Distance spindle nose to working surface of base (mm) |
220-100 |
220-100 |
300-1320 |
| Dimension of worktable (mm) |
600 X 450 X 450 |
600 X 450 X 450 |
600 X 450 X 450 |
| Dimension of base (mm) |
1710 X 800 X 160 |
1710 X 800 X 160 |
2050 X 900 X 900 |
| Overall size (mm) |
1760 X 800 X 2050 |
1760 X 800 X 2050 |
2100 X 900 X 2300 |
| Power of Main motor (KW) |
2.2 |
2.2 |
3 |
| G.W/N.W (kg) |
1920/1830 |
1920/1830 |
2500/2100 |
| Packing dimension (cm) |
187 X 97 X 220 |
187 X 97 X 220 |
235 X 106 X 245 |
PURROS Machinery have various types of Hydro Speed Regulators, Self-Feeding Drill Heads(Units), Multi-Spindle Drill Heads and Servo feed tapping machine, Special Purpose Machines, warmly waiting for you to inquire.
